Rotating Machinery
High-voltage Winding
The quality and durabillity of the stator & rotor, the core part of rotating electrical machines are influenced by the insulation system. Our High Voltage insulation System is epoxy type developed through technical cooperation with Nippon Rika Kogyosho, a professional manufacturer of rotator insulation materials and coil; excellent in electrical mechanical durabillity; and uses VPI method that is also used in high-coltage rotary machines in power, desalination, chemical, steel, cement and plant facillities.

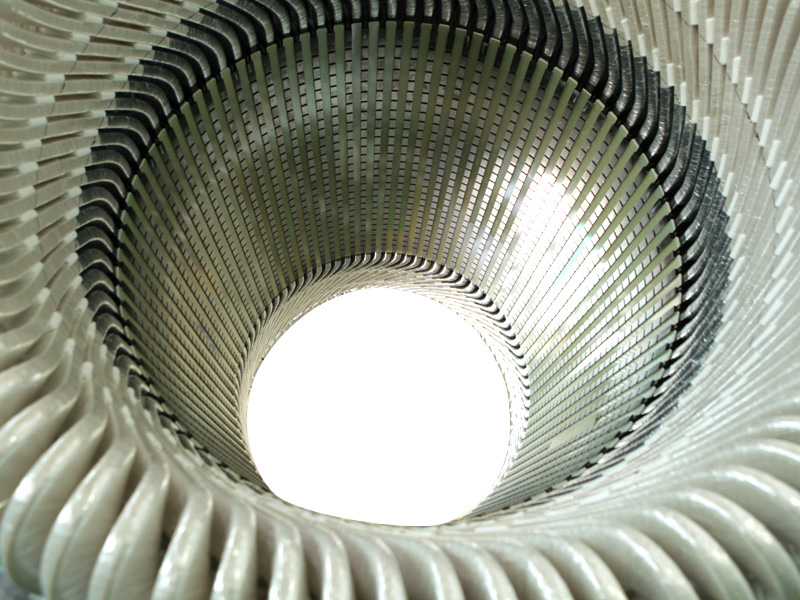

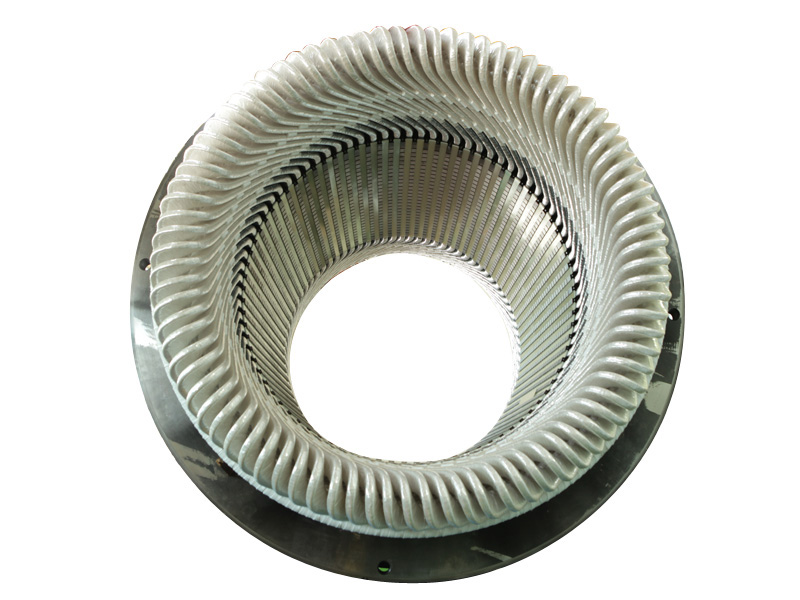

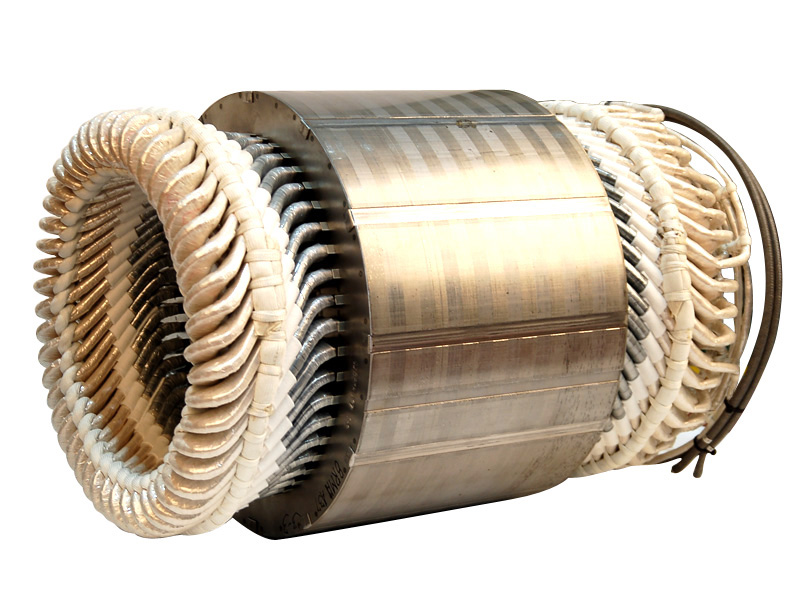

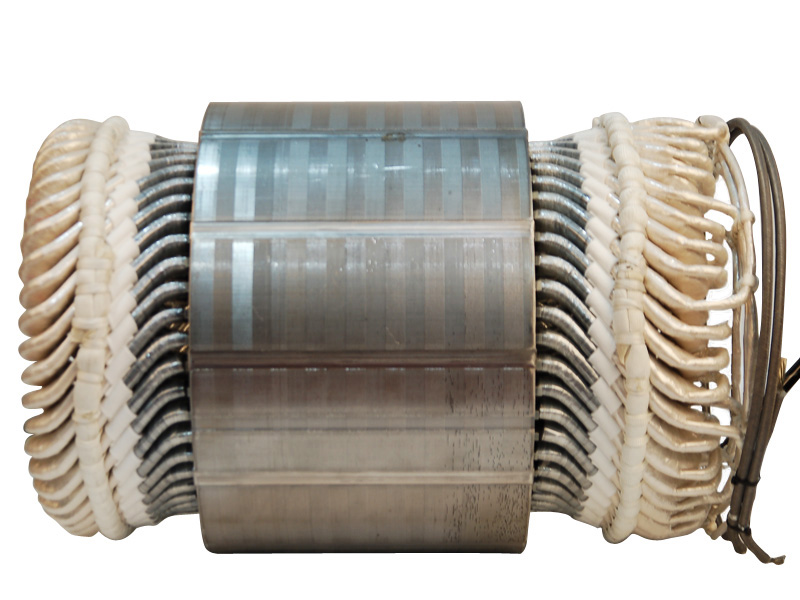

Product Image





Product Info
Application material : OFHC Copper, Electrical Tough-pitch Copper
Application scope : Green Diamond Coil (VPI & Resin Rich System: before impregnation)
Stator Assembly (VPI & Resin Rich System: before impregnation)
Rotor Form Coil (VPI & Resin Rich System: before impregnation)
Rotor Assembly (VPI & Resin Rich System)
Applications : Used in medium& large motors (large marine engines, land-based engine generators, reduction gears (marine), high-voltage generators of power plants (wind, industrial)
Rotating Machinery high-voltage winding | Production line of Rotating Machinery high-voltage winding
