OFHC Copper(OFHC)
OFHC refers to pure copper without oxygen or deoxidizer, of which the copper content is more than 99.99% and oxygen content is less than 10ppm. It is produced by deoxidizing by C or CO2 gas in a vacuum or charcoal deoxidizing device, followed by melting and casting, which needs high purity raw material and advanced melting furnace. Is has excellent properties including all the advantages of refined copper (Touch Pitch Copper) and phosphorus deoxidized copper, high conductivity, no high temperature hydrogen embrittlement(cracks or brittleness affected by the hydrogen molecules in the metal), and good processabillity at room temperature, We control the oxygen content under 5ppm to supply a better quality OFHC copper ROD BUS BAR.
Product Image
Product Info
Use : Used as material for electronic and electrical products requiring high-performance, precision and durability; and material for super high-voltage transformer coil and rotating equipment
Applications : Used as material for electronic and electrical products requiring high-performance, precision and durability; and material for super high-voltage transformer coil and rotating equipment
Type : 8.0Ø, 12.5Ø, 17.0Ø, 20.0Ø, 25.0Ø ROD and OFHC BUS BAR
Features : Extremely low generation of copper oxides power during machining; excellent electrical & thermal conductivity
Spec : CU 99.96% or more, oxygen content 10ppm or less (ASTM: American Society for Testing and Materials standard)
Remark : Enhanced performance of electronic devices owing to excellent conductivity and reduced impurity
Application : Cathode

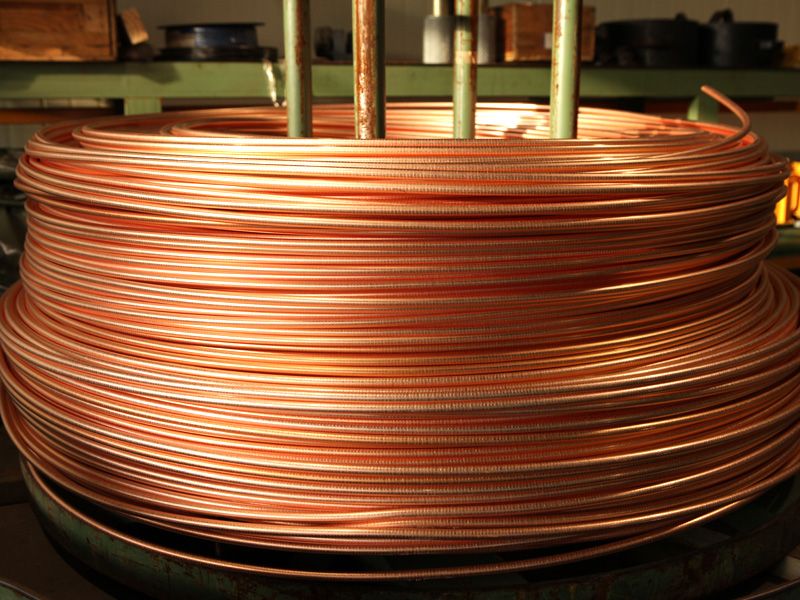

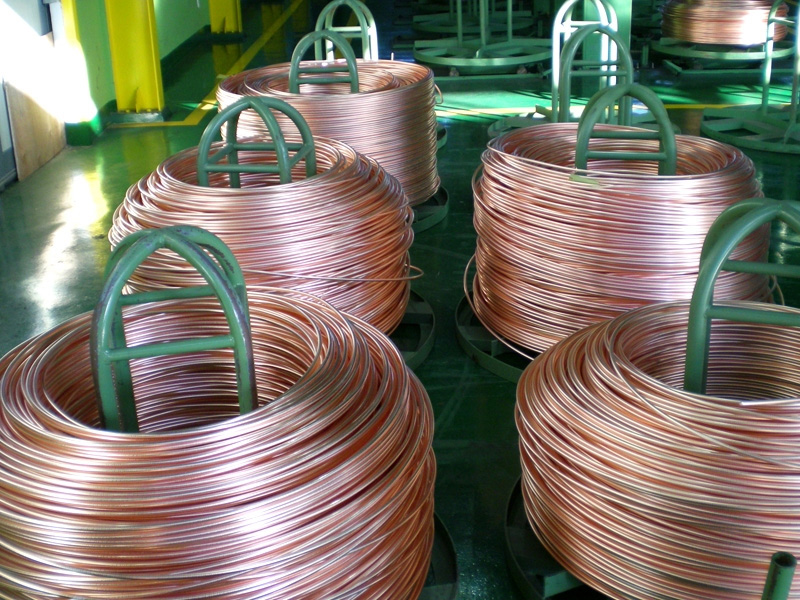

O.F.H.C | OFHC production line
