Mica
Mica insulating paper is made by gluing film (polyester, glass cloth) on Mica ingredients, and adding epoxy adhesive and curing agent; excels in flexibillity, is constant in thickness, is free from defects and foreign substance, excels in heat resistance, water resistance and moisture resistance, excels in high strength, insulation at high temperature, and is free from smoke and odor; and is used widely including in electric devices, electric appliances and industrial products.
Product Image
Product Info
| MODEL |
Thickness
(mm) |
Mass per
unit area
(g/m2) |
Volatile
inclusions
(%) |
Mica
content
(g/m2) |
Glue
content
(5) |
Tensile
strength
(N/mm) |
Breakdown
coltage
(KV) |
Hardener
content
(g/m2) |
| KMF-805A |
0.13 |
175±15 |
1.0≥ |
125±10 |
6±3 |
30< |
3.5≤ |
N/A |
| 0.15 |
202±15 |
1.0≥ |
148±10 |
5±3 |
30< |
4.0≤ |
2.4±0.4 |
| KM-805G |
0.13 |
154±15 |
1.0≥ |
120±10 |
9±3 |
80< |
1.0≤ |
2.4±0.4 |
| KMF-805G |
0.18 |
230±20 |
1.0≥ |
190±10 |
5±3 |
80< |
2.0≤ |
4.5±0.5 |
Applications : Windings for high- or low-voltage motors and generators, dry-type transformers

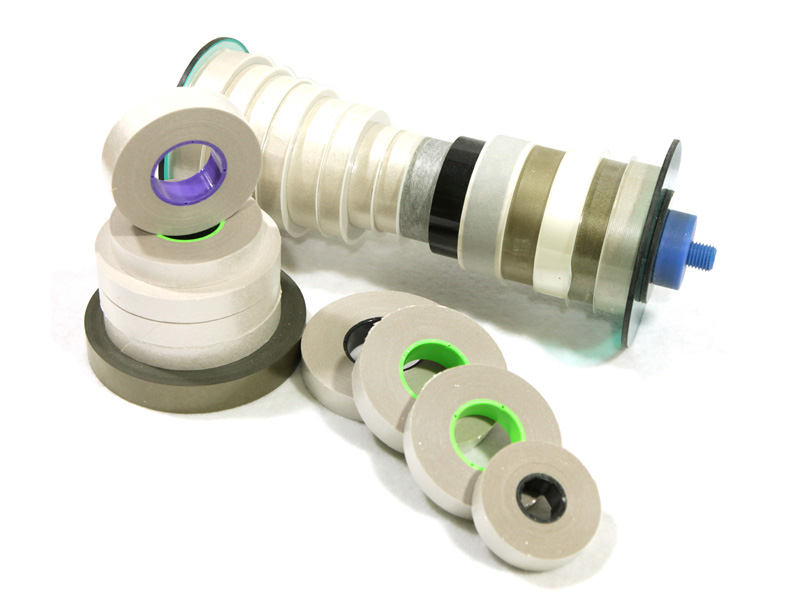

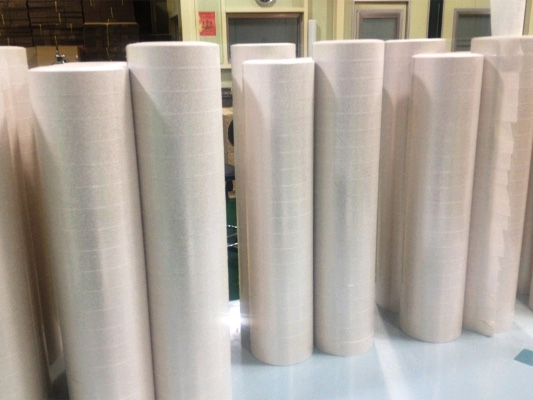

Mica insulating paper | Mica insulating paper production line
