Use : Used as winding coil for EVH transformers, generators, welders and DC motor

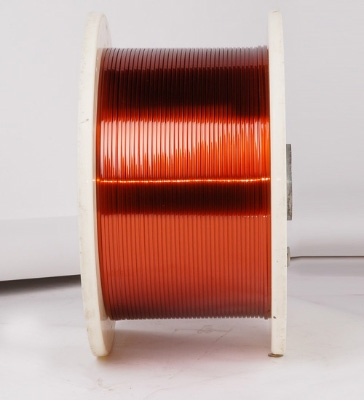

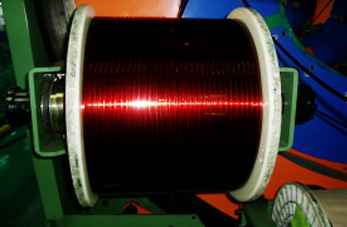

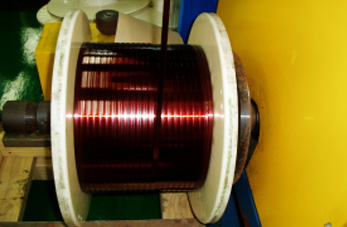

Type : Enamel varnish insulation coated rectangular copper wire
Features : Excellent heat resistance, chemical resistance, and solvent resistance
Spec(producible dimensions) : conductor thickness : 1.1mm~5.0mm , width : 2.5mm~15.0mm
Enamel thickness : GRADE 1: max. 0.12mm, GRADE 2: max. 0.17mm
Info : Enamel coating
         PVF(Polyvinyl formal : A155℃, E120℃)
         PEW(Polyester : F155℃, H180℃)
         PEI(Polyester-Imide : H180℃)
         PE-AIW(Polyester overcoated with Polyamide-Imide : H180℃, N200℃)
         AI-EIW(Polyester-Imide overcoated with Polyamide-Imide)
         AIW(Polyamide-Imide)
