H/F Fin Tube

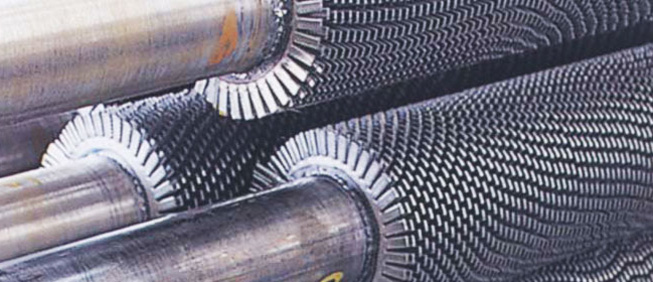

High frequency welded finned tube extend heat transfer surface that provides maximum efficency in heat exchange paalications from exhaust hot gas to a contained liquid process.
Both solid and serrated fin tube is used for Heat recovery steam generator, Petrochemical, Boiler plants, Economizer, Gas cooler and Heat exchangers in a wide range of applications.
Solid finned tube is recommentded for contaminated gas steams where oil, coal, wood or other high fouling fuels are used.
Serrated finned tube is primarily used in clean steams.

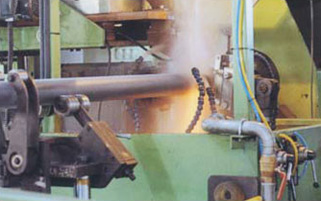

Welded finning work

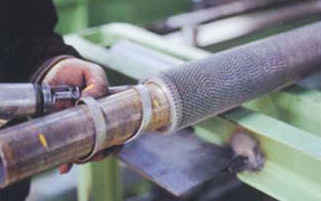

Fin removing work
Product Range
- • Tube outside diameter : 3/8inch ~ 8inch
- • Fin thickness : 0.8mm ~ 3.2mm
- • Fin height : 9mm ~ 38mm
- • Fin Pitch : 60FPI ~ 315FPM
- • Finning length : 24,000mm(Max.)
- • Material : Carbon steel, Low alloy steel, High grade corrosion resistant alloy steel, Ferritic and austenitic stainless steel & Non-ferrous metal.
Surface area of spiral solid finned tube
| 1" | 25.4mm | 0.44 | 0.68 | 0.92 | 0.44 | 0.68 | 0.92 | 0.32 | 0.58 | 0.8 | 0.26 | 0.44 | 0.68 | 0.32 | 0.44 | 0.58 | 12.7 |
| 1 1/4" | 31.8mm | 0.67 | 1.05 | 1.42 | 0.67 | 1.05 | 1.42 | 0.47 | 0.85 | 1.23 | 0.38 | 0.67 | 1.05 | 0.47 | 0.67 | 0.85 | 16 |
| 1 1/2" | 38.1mm | 0.92 | 1.46 | 1.99 | 0.92 | 1.46 | 1.99 | 0.65 | 1.19 | 1.73 | 0.52 | 0.92 | 1.46 | 0.65 | 0.92 | 1.19 | 19 |
| 2" | 50.8mm | 1.35 | 2.14 | 2.93 | 1.35 | 2.14 | 2.93 | 0.95 | 1.74 | 2.54 | 0.75 | 1.35 | 2.14 | 0.95 | 1.35 | 1.74 | 22 |
| 2 1/2" | 63.5mm | 1.6 | 2.53 | 3.46 | 1.6 | 2.53 | 3.46 | 1.13 | 2.06 | 2.99 | 0.09 | 1.6 | 2.53 | 1.13 | 1.6 | 2.06 | 22 |
| 3" | 76.2mm | 1.84 | 2.91 | 3.98 | 1.84 | 2.91 | 3.98 | 1.31 | 2.38 | 3.45 | 1.04 | 1.84 | 2.91 | 1.31 | 1.84 | 2.38 | 22 |
| 3 1/2" | 88.9mm | 2.4 | 3.8 | 5.21 | 2.4 | 3.8 | 5.21 | 1.67 | 3.1 | 4.51 | 1.34 | 2.4 | 3.8 | 1.67 | 2.4 | 3.1 | 25 |
| 4" | 101.6mm | 2.67 | 4.23 | 5.8 | 2.67 | 4.23 | 5.8 | 1.89 | 3.45 | 5.02 | 1.5 | 2.67 | 4.23 | 1.89 | 2.67 | 3.45 | 25 |
| 5" | 127mm | 3.22 | 5.1 | 6.98 | 3.22 | 5.1 | 6.98 | 2.28 | 4.16 | 6.04 | 1.81 | 3.22 | 5.1 | 2.28 | 3.22 | 4.16 | 25 |
| 6" | 152.4mm | 4.54 | 7.25 | 9.95 | 4.54 | 7.25 | 9.95 | 3.19 | 5.89 | 8.6 | 2.51 | 4.54 | 7.25 | 3.19 | 4.54 | 5.89 | 30 |
Surface area of spiral serrated finned tube
| 1" | 3.96/4.38 | 0.49 | 0.77 | 1.04 | 0.37 | 0.65 | 0.94 | 1.59 | ||||||
| 1 1/4" | 3.96/4.38 | 0.7 | 1.1 | 1.5 | 0.52 | 0.94 | 1.37 | 19.1 | ||||||
| 1 1/2" | 3.96/4.38 | 0.82 | 1.29 | 1.76 | 0.62 | 1.1 | 1.6 | 19.1 | ||||||
| 1 3/4" | 3.96/4.38 | 1.09 | 1.72 | 2.35 | 0.8 | 1.47 | 2.13 | 22.2 | ||||||
| 2" | 3.96/4.38 | 1.23 | 1.94 | 2.66 | 0.91 | 1.66 | 2.41 | 0.94 | 1.71 | 2.48 | 1.12 | 1.62 | 1.99 | 22.2 |
| 2 1/4" | 3.96/4.38 | 1.46 | 2.32 | 3.17 | 1.06 | 1.94 | 2.83 | 1.08 | 1.98 | 2.89 | 1.19 | 2.05 | 2.51 | 25.4 |
| 2 1/2" | 3.96/4.38 | 1.61 | 2.55 | 3.5 | 1.17 | 2.15 | 3.12 | 1.19 | 2.19 | 3.18 | 1.23 | 2.26 | 2.77 | 25.4 |
| 3" | 3.96/4.38 | 2.34 | 3.75 | 5.15 | 1.69 | 3.14 | 4.58 | 1.72 | 3.2 | 4.68 | 1.78 | 3.31 | 4.08 | 31.8 |
