Aluminum Brass Tube
Aluminum Brass Tube is a copper zinc alloy containing aluminum and small amount of arseric which is added as an inhibitor against dezincification. Inhibited Aluminum Brass resists the action of high velocity salt and brackish water and is commonly used for condenser tube.
The outstanding characteristic of Aluminum Brass is th high resistance to impringement attack.
Aluminum Brass tubes are highly accepted and one of the extensively used material for various industrial applications.
Product Range
- • Outside diameter : 5.0 mm(min) ~ 65 mm(max)
- • Wall thickness : 0.5mm(Min.)
- • Length : 27,000mm(Max.)
- • Product capacity per month : 500 M.T.
- • U-bend tube (smallest bending radius ≥ 2 x tube O.D.)
Application :

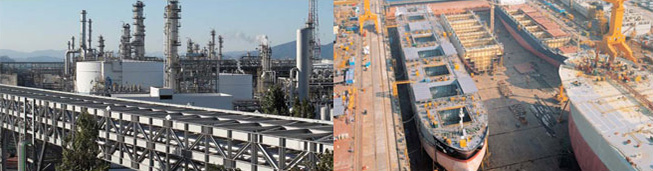

Steam Ejector, Intor and After Condensers, Grand steam condensers, Feed Water Evaporators for Petrochemical, Ship-building, Power plants and Desalination plants etc.
Chemical composition
| Standard | Class | Chemical composion(%) | Related standards | ||||||||||||||
| Cu | Zn | Pb | Fe | P | Sn | Ni | Mn | Al | As | Other | KS | JIS | ASTM | BS | DIN | ||
| ASTM | 1 | 76.0-79.0 | Rem. | 0.07 Max. | 0.06 Max. | 1.8-2.5 | 0.02-0.10 | D5301 C6870 | H3300 C6870 | B111 C68700 | 2871 CZ110 | 1785 CuZn20Al | |||||
| 2 | 76.0-79.0 | Rem. | 0.05 Max. | 0.05 Max. | 1.8-2.5 | 0.02-0.06 | Si 0.2-0.5 | C6871 | C6871 | C68700 | 2871 CZ110 | CuZn20Al | |||||
| 3 | 76.0-79.0 | Rem. | 0.07 Max. | 0.06 Max. | 0.20 - 1.0 | 0.20-Max. | 1.8-2.5 | 0.02-0.06 | Cr0.10 Max. | C6872 | C6872 | C68700 | 2871 CZ110 | CuZn20Al | |||
Mechanical properties
| Standard | Temper | Designation | Tensile test | Hardness test | |||||
| Outside diameter(mm) | Thickness (mm) | Tensile strength min ksi | Elongation in 2in., min% | Yield strength min ksi | Rockwell hardness | ||||
| HR30T | HR15T | ||||||||
| ASTM | O61 | C68700 | 5-50 | 0.8-0.10 | 50 | - | 18 | - | - |
| JIS | O61 | C6871T-O | 50-250 | 0.8-0.10 | 36Min. | 40Min. | 13Min. | - | - |
| C6872T-O, C687TS-O | 50-250 | 0.8-0.10 | 36Min. | 40Min. | 13Min. | - | - | ||
