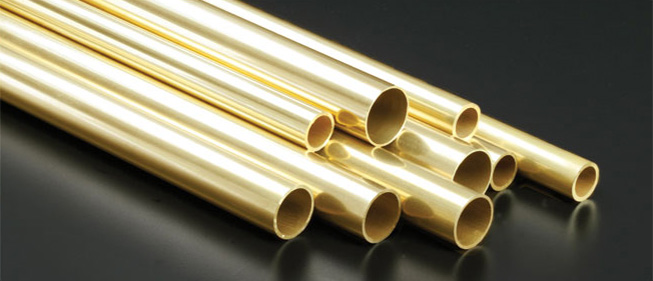

Admiralty Brass Tube
Admiralty Brass Tube is a copper zinc alloy, and contains small amount of Tin and Arsenic.
These Admiralty Brass Tubes are renowned for their characteristic of superior corrosion resistance in a moderately polluted river water river water and clean seawater, both stagnant or slow moving water.
The most common and wrought form is tube for heat exchange equipment.
Product Range
- • Outside diameter : 10 mm(min) ~ 65 mm(max)
- • Wall thickness : 0.5mm(Min.)
- • Length : 27,000mm(Max.)
- • Product capacity per month : 500 M.T.
- • U-bend tube (smallest bending radius ≥ 2 x tube O.D.)
Application :

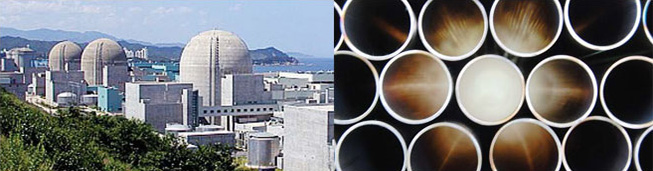

Evaporators, Condensate Coolers, Heaters, Vent Condensers, Water Heaters, Generator Air Coolers, Turbine Oil Collears, Petrochemical, Ship-building, Power plants and Desalination plants etc.
Chemical composition
| Class | Chemical composion(%) | Related standards | ||||||||||||||
| Cu | Zn | Pb | Fe | P | Sn | Ni | Mn | Al | As | Other | KS | JIS | ASTM | BS | DIN | |
| 1 | 70.0-73.0 | Rem. | 0.07 Max. | 0.06 Max. | - | 0.9-1.2 | - | - | - | 0.2-0.10 | - | D5301 C4430 | H3300 C4430 | B111 C44300 | 2871 CZ111 | 1785 CuZn28Sn |
| 2 | 70.0-73.0 | Rem. | 0.07 Max. | 0.06 Max. | - | 0.9-1.2 | - | - | - | - | Anti 0.02-0.10 | - | - | C44300 | - | - |
| 3 | 70.0-73.0 | Rem. | 0.07 Max. | 0.06 Max. | 0.02-0.10 | 0.9-1.2 | - | - | - | - | - | - | - | C44300 | - | - |
Mechanical properties
| Temper | Designation | Tensile test | Hardness test | |||||
| Outside diameter(mm) | Thickness (mm) | Tensile strength min ksi | Elongation in 2in., min% | Yield strength min ksi | Rockwell hardness | |||
| HR30T | HR15T | |||||||
| O61 | C44300 | 5-50 | 0.8-0.10 | 45 | - | 15 | - | - |
