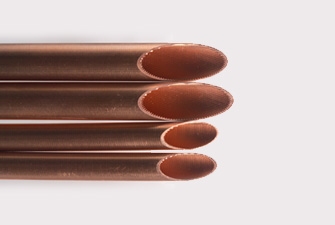

<Inner grooved Tube>
Use
Inner grooved tube is a tube whose surface area was broadened to increase thermal conductivity, by continuous processing of spiral inner groove on the internal side of smooth copper tube.It is used for air conditioner and it contributes to save energy and miniaturization.
Product Specification
KS D5301 / JIS H3300 / ASTM B280,B68,B75
Product Range
Outer Diameter : 5mm ~ 9.52mm Thickness : 0.25mm ~ 0.36mm
Weight : 100Kg ~150Kg Temper : Light Annealed(OL)
