According to restriction of refrigerant CFC Freon gas since 1996, refrigerant for automotive air-conditioning condensers had to be replaced
into new refrigerant.
In this regard, we are supplying the newly developed Aluminum tubes
(PFC:Parallel Flow Condenser) which is more durable against corrosion and
more efficient than existing Serpentine type of condenser for the new refrigerant.
The ultra-precision PFC Type Aluminum Tube that excels in corrosion
resistance with semi-permanent durability and is quarter(1/4) in
the size and the weight compared to existing condenser tubes. The
environment-friendly PFC Tube realized energy saving by using the
highly effective new-refrigerant. And also,PFC(Parallel Flow Condenser)
tube to make considerable contributions toward protecting the environment
and saving valuable energy in consumers' everyday lives.
Available sizes and tolerances are as followings. |
| |
 |
| |

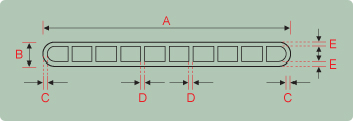

Mark (mm) |
Range of size
(mm) |
Tolerance (mm)
|
Coiled tube
|
Streight tube
|
| * M.M.P(Micro Multi Port) tube for PFC (Parallel Flow Condenser) (5~20 Holes) |
A |
12 ~ 35
|
+ - 0.08
|
|
B |
1.2~3.0
|
+ - 0.06 |
+ - 0.02 |
C |
Min 0.3
|
+ - 0.08 |
+ - 0.06 |
D |
Min 0.2
|
+ - 0.08 |
+ - 0.06 |
E |
Min 0.3
|
+ - 0.08 |
+ - 0.08 |
Length
|
Coiled |
Max 200Kg |
- |
| * M.P
(Multi Port) tube for Serpentine Type Condensor. |
A |
19 ~ 40 |
+ - 0.08 |
+ - 0.05 |
B |
3 ~ 7 |
+ - 0.15 |
+ - 0.05 |
C |
Min 0.6 |
+ - 0.10 |
+ - 0.05 |
D |
Min 0.6 |
+ - 0.10 |
+ - 0.05 |
E |
Min 0.6 |
+ - 0.10 |
+ - 0.05 |
Length |
Min 20,000 |
- |
+ - 1.0 |
| * Aluminum tubes for Intercooler / Evaporator
|
A |
50 ~ 105 |
+ - 0.08 |
+ - 0.05 |
B |
4 ~ 8 |
+ - 0.15 |
+ - 0.05 |
C |
Min 0.6 |
+ - 0.1 |
+ - 0.05 |
D |
Min 0.6 |
+ - 0.1 |
+ - 0.05 |
E |
Min 0.6 |
+ - 0.1 |
+ - 0.05 |
Length |
200 ~ 1.000 |
- |
+ - 0.5 |
|
| |
| |
|
